Low to high-rise
Up to 2,000 feet of rise
Up to 5,000 LBS
Up to 800 FPM

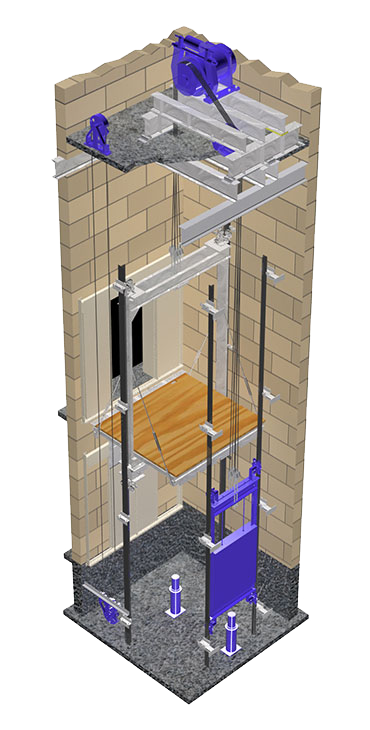

Schumacher Geared Traction Elevators are available in custom sizes or various pre-engineered models with various capacities. Pre-engineered models are available in capacities up to 5,000 lbs with both front and rear opening models and speeds up to 500 fpm.
| Capacity (lb.) | Cab Layout | Openings | IBC Gurney Compliant | Opening Type | Hoistway (W x D) | Interior (W x D) | Door Width | DWG | |
|---|---|---|---|---|---|---|---|---|---|
| 2000 | Standard | F | No | SS | 7'4" x6'6" | 5'8" x 4'3" | 3'0" |  |  |
| Standard | F & R | No | SS | 8'3" x 6'6 1/2" | 5'8" x 4'3" | 3'0" | | | |
| 2500 | Standard | F | No | SS or CP | 8'4" x 6'6" | 6'8" x 4'3" | 3'6" | | |
| Standard | F & R | No | SS or CP | 9'3" x 6'6 1/2" | 6'8" x 4'3" | 3'6" | | | |
| 3000 | Standard | F | No | SS or CP | 8'4" x 7'0" | 6'8" x 4'9" | 3'6" | | |
| Standard | F & R | No | SS or CP | 9'3" x 7'0 1/2" | 6'8" x 4'9" | 3'6" | | | |
| 3500 | Standard | F | Yes | SS or CP | 8'4" x 7'8" | 6'8" x 5'5" | 3'6" | | |
| Standard | F & R | Yes | SS or CP | 9'3" x 7'8 1/2" | 6'8" x 5'5" | 3'6" | | | |
| Extended | F | Yes | TS | 7'4" x 9'2" | 5'8" x 6'8" | 4'0" | | | |
| Extended | F & R | Yes | TS | 8'3" x 9'5 1/2" | 5'8" x 6'8" | 4'0" | | | |
| 4000 | Standard | F | Yes | TS | 9'4" x 7'11" | 7'8" x 5'5" | 4'0" | | |
| Standard | F & R | Yes | TS | 10'3" x 8'2 1/2" | 7'8" x 5'5" | 4'0" | | | |
| Extended | F | Yes | TS | 7'4" x 9'11" | 5'8" x 7'5" | 4'0" | | | |
| Extended | F & R | Yes | TS | 8'3" x 10'2 1/2" | 5'8" x 7'5" | 4'0" | | | |
| 4500 | Extended | F | Yes | TS | 7'4" x 10'3 1/2" | 5'8" x 7'9 1/2" | 4'0" | | |
| Extended | F & R | Yes | TS | 8'3" x 10'7" | 5'8" x 7'9 1/2" | 4'0" | | | |
| 5000 | Extended | F | Yes | TS | 7'4" x 10'11" | 5'8" x 8'5" | 4'0" | | |
| Extended | F & R | Yes | TS | 8'3" x 11'2 1/2" | 5'8" x 8'5" | 4'0" | | |
| Speed | Minimum Pit Depth | Minimum Overhead | Capacity | Cab Height |
|---|---|---|---|---|
| 0-200 fpm | 5'0" | 15'6" | 2000-4000 lbs | 8'0" |
| 0-200 fpm | 5'2" | 15'6" | 4500-5000 lbs | 8'0" |
| -350 fpm | 5'9" | 16'0" | 2000-5000 lbs | 8'0" |
| -400 fpm | 5'9" | 16'4" | 2000-5000 lbs | 8'0" |
| -500 fpm | 6'4" | 16'10" | 2000-5000 lbs | 8'0" |
F - Front
R - Rear
SS - Single Slide
CP - Center Parting
TS - Two Speed
One–end open elevators in seismic zones two or greater require an additional 2” hoistway depth.
Two–end open elevators in seismic zones two or greater require an additional 3” hoistway width.
All Schumacher Elevator Company Geared/Gearless Traction Elevators meet or exceed all requirements set by the American Society of Mechanical Engineeers (ASME A17.1).
Given dimensions are for planning purposes only and are not intended for construction-use. Actual dimensions will be verified during the engineering process.
Custom designs available.
