Low to mid-rise buildings
Up to 60 feet of rise
Up to 5,000 lbs
Up to 150 FPM

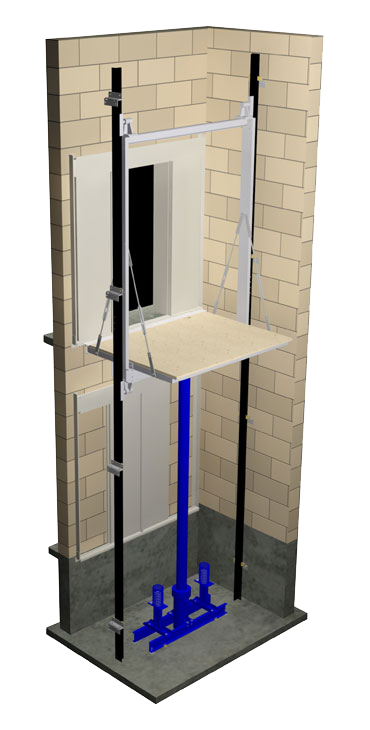

This application requires a well hole. All Schumacher In-Ground Hydraulic Elevators offer a PVC liner that provides protection from galvanic or electrolytic corrosion and prevents oil from leaking into the soil.
| Capacity (lb.) | Cab Layout | Openings | IBC Gurney Compliant | Opening Type | Hoistway (W x D) | Interior (W x D) | Door Width | DWG | |
|---|---|---|---|---|---|---|---|---|---|
| 2000 | Standard | F | No | SS | 7'4" x 5'9" | 5'8" x 4'3" | 3'0" |  |  |
| Standard | F | No | TS | 7'4" x 6'0" | 5'8" x 4'3" | 4'0" | | | |
| Standard | F & R | No | SS | 7'4" x 6'6 1/2" | 5'8" x 4'3" | 3'0" | | | |
| Standard | F & R | No | TS | 7'4" x 7'0 1/2" | 5'8" x 4'3" | 4'0" | | | |
| 2500 | Standard | F | No | SS or CP | 8'4" x 5'9" | 6'8" x 4'3" | 3'6" | | |
| Standard | F | No | TS | 8'4" x 6'0" | 6'8" x 4'3" | 4'6" | | | |
| Standard | F & R | No | SS | 8'4" x 6'6 1/2" | 6'8" x 4'3" | 3'6" | | | |
| Standard | F & R | No | TS | 8'4" x 7'0 1/2" | 6'8" x 4'3" | 4'6" | | | |
| 3000 | Standard | F | No | SS or CP | 8'4" x 6'3" | 6'8" x 4'9" | 3'6" | | |
| Standard | F | No | TS | 8'4" x 6'6" | 6'8" x 4'9" | 4'6" | | | |
| Standard | F & R | No | SS or CP | 8'4" x 7'0 1/2" | 6'8" x 4'9" | 3'6" | | | |
| Standard | F & R | No | TS | 8'4" x 7'6 1/2" | 6'8" x 4'9" | 4'6" | | | |
| 3500 | Standard | F | Yes | SS or CP | 8'4" x 6'11" | 6'8" x 5'5" | 3'6" | | |
| Standard | F | Yes | TS | 8'4" x 7'2" | 6'8" x 5'5" | 4'6" | | | |
| Standard | F & R | Yes | SS or CP | 8'4" x 7'8 1/2" | 6'8" x 5'5" | 3'6" | | | |
| Standard | F & R | Yes | TS | 8'4" x 8'2 1/2" | 6'8" x 5'5" | 4'6" | | | |
| Extended | F | Yes | TS | 7'4" x 8'5" | 5'8" x 6'8" | 4'0" | | | |
| Extended | F & R | Yes | TS | 7'4" x 9'5 1/2" | 5'8" x 6'8" | 4'0" | | | |
| 4000 | Standard | F | Yes | SS or CP | 9'4" x 6'11" | 7'8" x 5'5" | 4'0" | | |
| Standard | F | Yes | TS | 9'4" x 7'2" | 7'8" x 5'5" | 5'0" | | | |
| Standard | F & R | Yes | SS or CP | 9'4" x 7'8 1/2" | 7'8" x 5'5" | 4'0" | | | |
| Standard | F & R | Yes | TS | 9'4" x 8'2 1/2" | 7'8" x 5'5" | 5'0" | | | |
| Extended | F | Yes | TS | 7'4" x 9'2" | 5'8" x 7'5" | 4'0" | | | |
| Extended | F & R | Yes | TS | 7'4" x 10'2 1/2" | 5'8" x 7'5" | 4'0" | | | |
| 4500 | Extended | F | Yes | TS | 7'4" x 9'6 1/2" | 5'8" x 7'9 1/2" | 4'0" | | |
| Extended | F & R | Yes | TS | 7'4" x 10'7" | 5'8" x 7'9 1/2" | 4'0" | | | |
| 5000 | Extended | F | Yes | TS | 7'4" x 10'2" | 5'8" x 8'5" | 4'0" | | |
| Extended | F & R | Yes | TS | 7'4" x 11'2 1/2" | 5'8" x 8'5" | 4'0" | | |
| Minimum Pit Depth | Minimum Overhead | Minimum Overhead (Up to 200 FPM) | Cab Height | Machine Room Requirements | Machine Room Drawing | Up to 150 FPM | Up to 200 FPM |
|---|---|---|---|---|---|
| 4'0" | 12'0" | 12'6" | 8'0" | 5'6" x 7'0" | |
F - Front
R - Rear
SS - Single Slide
CP - Center Parting
TS - Two Speed
All Schumacher Elevator Company In-Ground Hydraulic Elevators meet or exceed all requirements set by the American Society of Mechanical Engineeers (ASME A17.1).
Given dimensions are for planning purposes only and are not intended for construction use. Actual dimensions will be verified during the engineering process.
Custom designs available.
